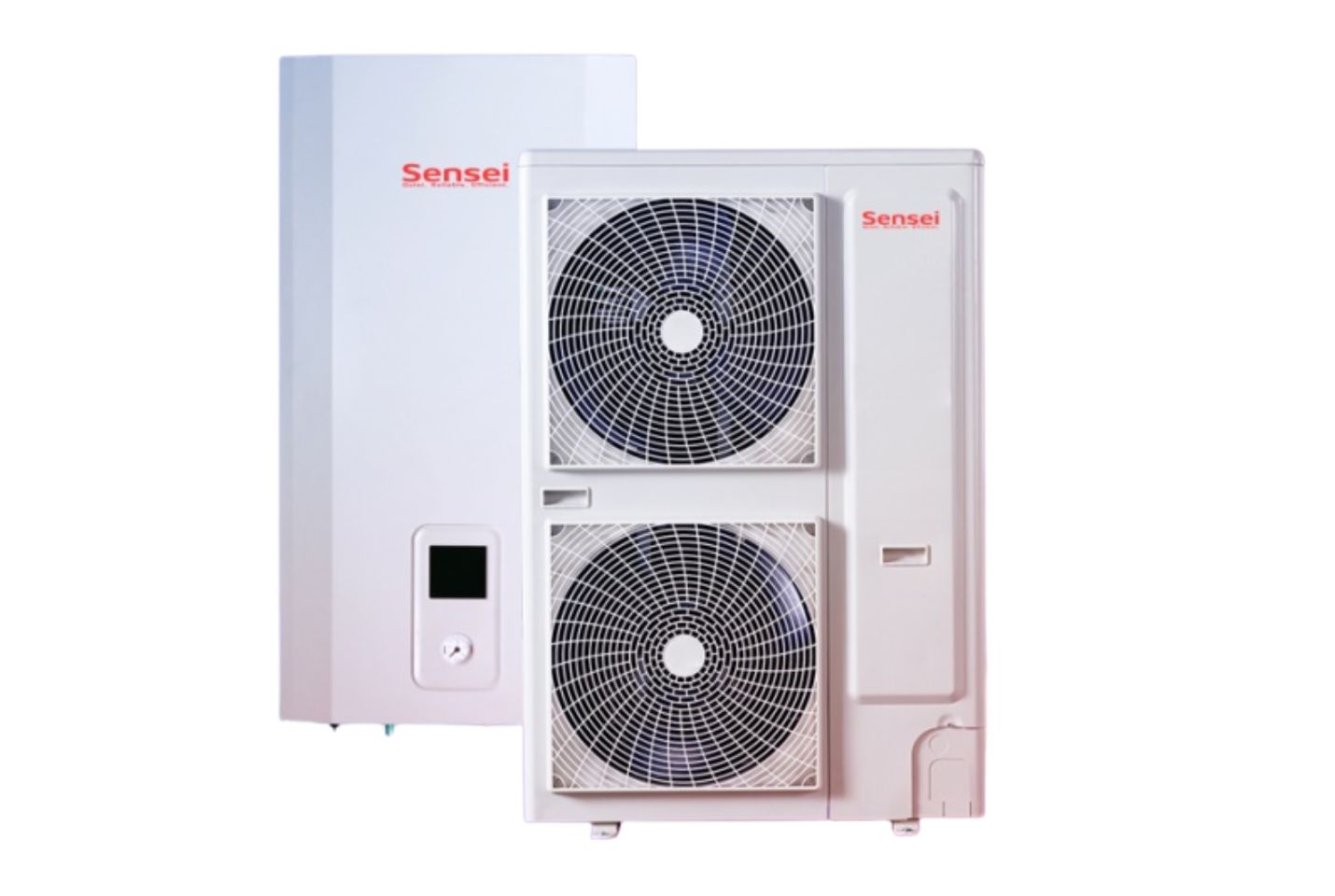

SPLIT R32 DC INVERTER · Air-to-Water Heat Pump
HPGS-V12HW
Cooling: 8.5 kW
Heating: 10.0 kW
The HPGS-V12HW is a highly efficient split-type air-to-water heat pump with a nominal thermal capacity of 10.0 kW (powered by a single-phase 220–240V supply). The system consists of an outdoor unit and an indoor hydro-module. We recommend this balanced setup for mid-sized homes, townhouses, and modernized cottages ranging from 80 to 110 m². It serves as an excellent all-in-one primary system for space heating, active summer cooling, and domestic hot water (DHW) generation.
Official warranty
Delivery across Ukraine
Year-Round Comfort
This advanced air-to-water split system is certified to deliver stable heating in extreme winter climates down to -28°C, and highly effective cooling in summer up to +43°C. During the hot summer months, the system reverses its thermodynamic cycle to supply chilled water to underfloor cooling loops or fan coils. Guided by an advanced controller, it manages water temperature delivery with an accuracy of ±0.5°C, ensuring optimal comfort without thermal overshoot or sudden temperature drops.
Technical Advantages & Features
-
Top-Tier Seasonal Efficiency (A+++ Heating / A++ Cooling): Delivers 10.0 kW heating and 8.5 kW cooling capacity. Utilizing smart inverter technology, the system maximizes heat transfer from ambient outdoor air (up to 75% free energy extraction), drastically lowering seasonal heating bills.
-
Safe Split Construction: All water-carrying hydraulic connections and components are safely housed inside the indoor hydro-module. Even during emergency winter power outages, there is zero risk of external pipe bursts or freezing.
-
Heavy-Duty Compressor: Houses a high-performance compressor featuring enhanced sound insulation and low-vibration performance with an outdoor sound power level of 70 dB.
-
Ozone-Safe R32 Refrigerant: Optimized for high-pressure R32 refrigerant, improving the system’s thermodynamic heat transfer efficiency while reducing the overall environmental footprint.
-
Color Touchscreen Controller: Features an integrated, user-friendly wired touch controller to program complex weather-dependent heating curves, DHW sanitization cycles, and priority settings.
Best Suited For:
Owners of mid-sized private homes and cottages (80–110 m²) running on a single-phase 220–240V / 50Hz grid, who want to transition away from traditional gas or electric boilers to a high-efficiency green energy system.
Might Not Be Suited For:
If your home's total heated area exceeds 120 m² or requires a 3-phase power connection, the 10.0 kW capacity will be insufficient during peak winter frosts; in this case, upgrading to the HPGS-V16HW (16.0 kW) is recommended.
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
High pressure-ratio compressor
High pressure-ratio compressor — up to 13 — with better performance at low ambient temperatures. Renowned GMCC brand. DC rotary inverter compressor. Refrigerant: R32.
DC fan motor
Brushless DC fan motor. Higher efficiency, low noise level
Larger heat exchanger
A larger heat exchanger to match the required heat-exchange area at low ambient temperatures. Flat-type fins improve defrosting efficiency.
Integrated PCB
The integrated PCB for the single-phase unit reduces the risk of damage to each component.
Plate heat exchanger
Efficient heat transfer for both heating and cooling. Compact footprint. Withstands high temperatures and high pressure.
Inverter water pump
High-efficiency inverter water pump. Brand: Wilo Para series. Water head is 9 m for the 8 kW, 12 kW, and 16 kW hydronic modules. CE and VDE compliant, 50/60 Hz.
Expansion tank
When water heats up, it expands and its pressure rises. Without room for thermal expansion, serious problems can occur in the water system, including failure or rupture. The expansion tank maintains stable pressure in the water system. Pre-charge pressure: 0.15 MPa. Volume: 2 L.
KEY SPECIFICATIONS
- Cooling (kW)
- 8.5
- Heating (kW)
- 10.0
- Compressor Type
- Rotary DC inverter
- Main Modes
- Heating / Cooling / DHW
- Power Supply
- 220~240/1/50 V/Ph/Hz
- Capacity (kW)
- 10
- Poles
- 6
- Speed (rps)
- 12~120
- Oil
- POE/1000mL
- Motor Type
- Brushless DC motor
- Number of Fans
- 1
- Heat Exchanger Rows
- 2,5
- Compressor model
- EKTF310D43UMT
- Charge Volume (kg)
- 3,1
- Tube Pitch × Row Pitch (mm)
- 25x21,7
- Heat Exchanger Tube Type and Diameter
- Ф9.52 grooved copper pipe
- Fin Spacing (mm)
- 1,6
- Heat Exchanger Fin Type
- Hydrophilic aluminum
- Heat Exchanger Dimensions
- 1003x750x43,3 + 580x750x21,65
- Number of Turns
- 5
- Pipe Diameter (OD, mm)
- Ф9.52
- Expansion Device
- EXV
- Compressor Manufacturer
- GMCC
- Safety Valve (kPa)
- 600
- Expansion Tank (volume, L)
- 2
- Pump Head (m)
- 9
- Number of Phases
- 1
- Max. water pressure (kPa)
- 800 kPa
- Nominal pressure (kPa)
- 150 kPa
- Rated power consumption (kW)
- 3kW
- Rated current (A)
- 13,6A
- refrigerant_topup
- (Total pipeline length is -5)m*30 g/m
PERFORMANCE
- Air Flow (m³/h)
- 4000 m3/godz
- EER Energy Efficiency
- 2,7 kW/kW
- COP Energy Efficiency
- 3,4
- Maximum Current Draw (A)
- 22
- Energy Efficiency Class (water 35°C)
- А++
- Energy Efficiency Class (water 55°C)
- А++
- Max. Power Consumption (kW)
- 5
- Max. power consumption, indoor (kW)
- 3,6 kW
- Max. current, indoor (A)
- 17 A
- SCOP Energy Efficiency
- 4,14 kW/kW
- Power Consumption (kW)
- 2,9
- Hot Water Temperature
- 40~60°C
- Hot water supply, indoor (°C)
- 40~60°C
SOUND AND CONVENIENCE
- Indoor Unit Noise Level (dB)
- 45
- Outdoor Unit Noise Level (dB)
- 68
INSTALLATION AND PIPING
- Maximum Line Length (m)
- 50 m
- Operating Temperatures (Heating)
- -28~43°C
- Operating Temperatures (Cooling)
- -5~46°C
- Liquid Pipe Diameter (mm)
- Ф9.52
- Gas Pipe Diameter (mm)
- Ф15.88
- Height Difference (above, m)
- 20
- Height Difference (below, m)
- 20
- Connecting Pipe Diameter (outlet)
- DN32
- Connecting Pipe Diameter (inlet)
- DN32
- Cooling water temp, indoor (°C)
- 5~25 °C
- Cooling water temp, outdoor (°C)
- 5~25°C
- Heating water temp, outdoor (°C)
- 25~60°C
- Heating water temp, indoor (°C)
- 25~60°C
INDOOR UNIT DIMENSIONS AND WEIGHT
- Indoor Unit Weight (kg)
- 48/56 kg
- Packing W×H×D, indoor (mm)
- 620*1105*425 mm
- Indoor Unit Dimensions (W×D×H)
- 490*910*340 mm
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Outdoor Unit Weight (kg)
- 67,5/70,5 kg
- Packaged Dimensions (W×H×D, mm)
- 1075x875x495 mm
- Outdoor Unit Dimensions (W×D×H)
- 1032x810x445 mm
